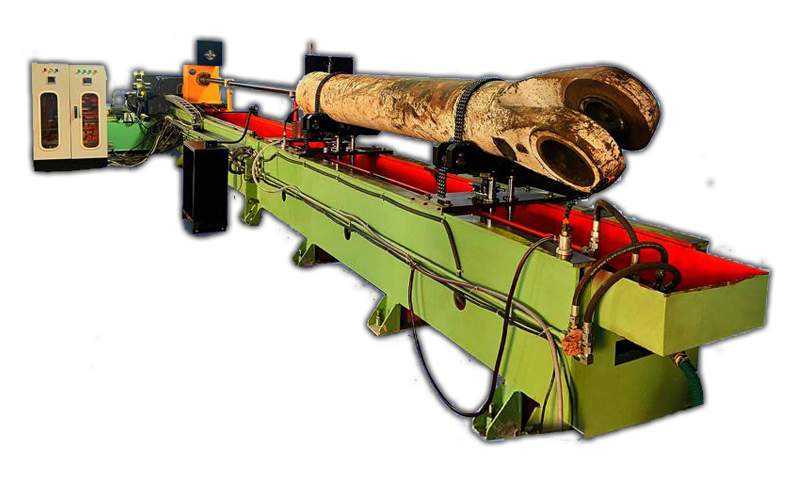

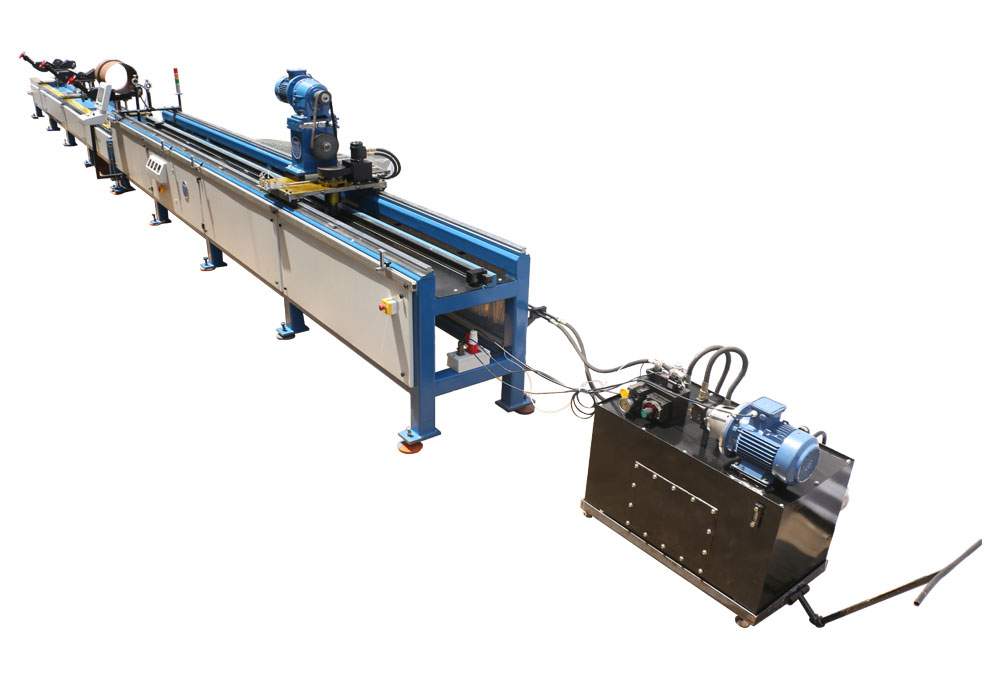

D-HONER make Model : HHM-500x7000mm is Horizontal Honing Machine capable of honing extra-
long & heavier components like Hydraulic / Pneumatic Cylinders, Injection Moulding Cylinders. This
machine was specially designed for extra-long Horizontal Cylinders and for repairing industries. The
job range covers from 50 mm to 600 mm in diameters and 7000 mm Honing length. Reciprocation of
machine is operated hydraulically and Tool Expansion manually. Honing Cycle is fully automatic.
This model is fabricated in Heavy structure. Honing Housing is moving on Linear Guide-ways
specially chrome plated for smooth function and to prevent corrosion.

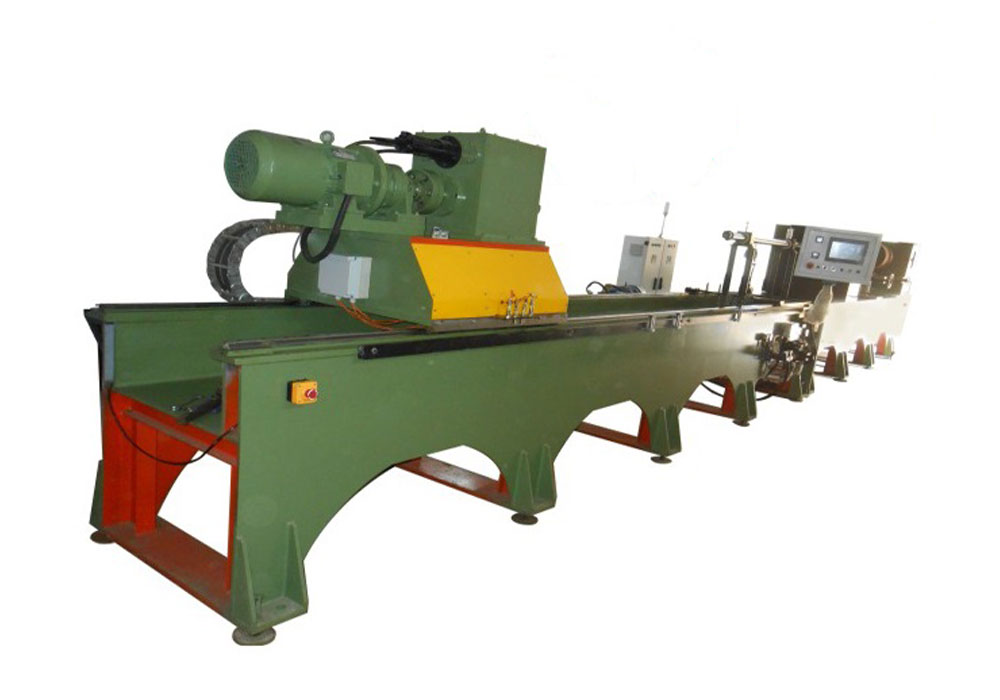

Horizontal Tube Honing Machine 6 mtr
Description
D-HONER make Model : HHM-150x6000mm is heavy duty Horizontal Honing Machine. This machine
is capable to do honing heavy jobs, Cylinders, Barrel. This machine was specially manufactured for
Injection Moulding Barrel for precision honing. The range covers from 25 mm to 300 mm in diameter
and 6000 mm honing length.
This machine is fully hydraulic honing machine where reciprocation is done with heavy hydraulic
cylinders, Tool expansion with Hydraulic Cylinder. Rotation is with Hydro Motor. Honing Cycle is fully
automatic. Machine is fully equipped with Filtration Unit and Chilling Unit for better result.
Horizontal Honing Machine 4 Mtr.
Description
D-HONER make Model : HHM-500x4000mm is heavy duty Horizontal Honing Machine which can
hone heavy cylinders with big diameter with high RPM. This machine is specially designed for Coal
Mining machine cylinders. The job range covers 50 to 500 mm diameter and 4000 mm honing length.
Machine’s heavy structure is fabricated in MS Plate. Machine is fully hydraulic. Reciprocation is done
with hydraulic cylinder. Tool Expansion done with Hydraulic Cylinder and Rotation with Hydro Motor.
This machine is fully equipped with filtration Unit, Chilling Unit, Automatic Lubrication System and two
Heavy Chain Type Job Clamping systems.

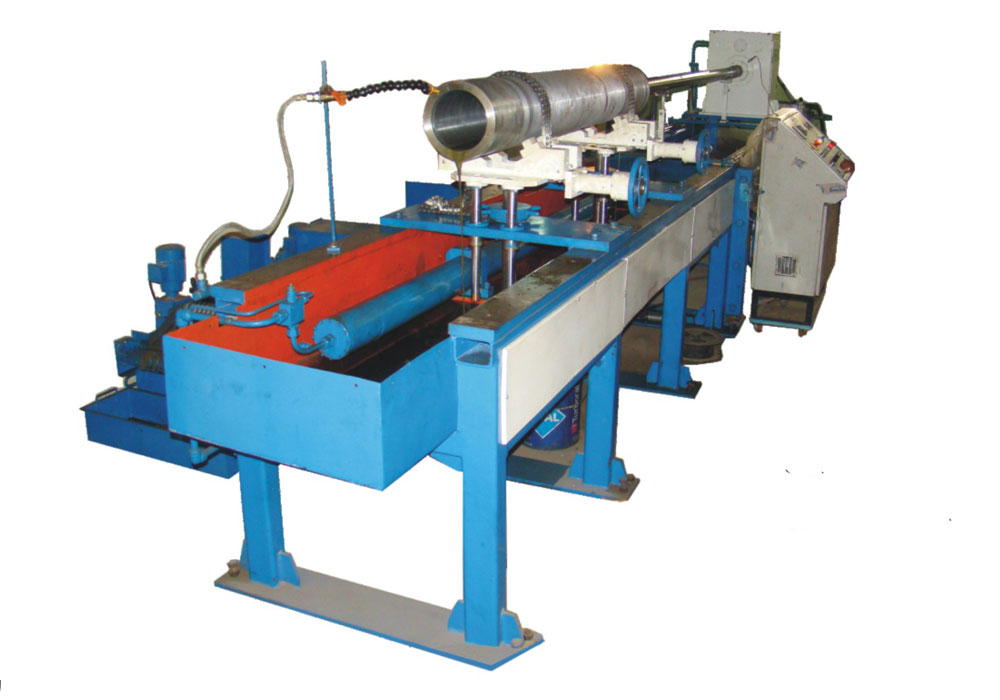

Horizontal Tube Honing Machine 3.5 mtr
Description
D-HONER make Model : HHM-300x3500mm is Horizontal Tube Honing Machine. This machine is
designed for Tube Honing. The Honing Job Range covers from 25 mm to 300 mm in diameter and
3500 mm Honing Length. Machine is operated fully hydraulic where Reciprocation is done with
Hydraulic Cylinders, Tool Expansion with Hydraulic Cylinder and Tool Expansion with Hydro Motor.
Machine manufactured with two fixtures chain Clamping set, Lubrication Unit and Coolant Filtration
Unit.
